carbon steel structure
The mainstream choices for materials are steel and aluminum alloy. Each has its pros and cons, and a decision requires comprehensive consideration of local climate conditions (wind pressure, snow load), geology and terrain, cost budget, and installation convenience. If you have any questions during the procurement process, you can contact us. We will provide you with the most suitable procurement solution based on your needs.
Description
Material |
Aluminum / Galvanized steel / Stainless steel |
Wind Load |
216 KM/H =60 M/S |
Snow Load |
1.4 KN/M² |
Applicable Module |
Framed or Frameless |
Module Orientation |
Portrait or Landscape |
Application |
Solar Panel Mounting System |
Installation Site |
Agriculture |
Dimensions |
Customized |
Lengths |
Customized |
Warranty |
10 Years Warranty, Over 20 Years Service Life |
Supply Ability |
More than 10MW's mounting brackets per Week |
Features
-
1)Easy to install.
The tilt-in module can be placed into the extruded rail from any location and can be highly pre-assembled using the ballast method to minimize the time and cost of installation.
-
2)Offer unmatched durability.
With all structural components made of high - class stainless steel and anodized aluminum alloy, it is designed for a twenty - year service life and backed by a ten - year warranty.
-
4)Stand up to extreme weather.
The PV Mounting Solar Panel Structure is designed to withstand extreme weather, complying with the AS/NZS1170 and other international structure load standards by skilled engineers. The main support components have also been tested to guarantee their structure and load - carrying capacity.
-
3)Provide broad installation flexibility.
These systems accommodate most commercially available framed solar panels and diverse...
Product display
-

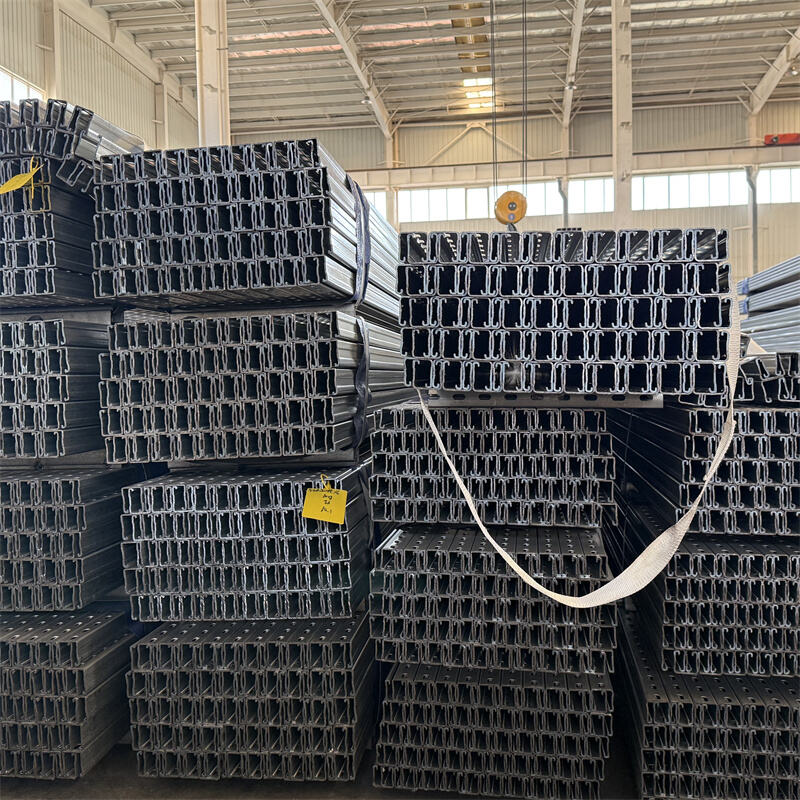

Installation Solar Powered Carport System
-

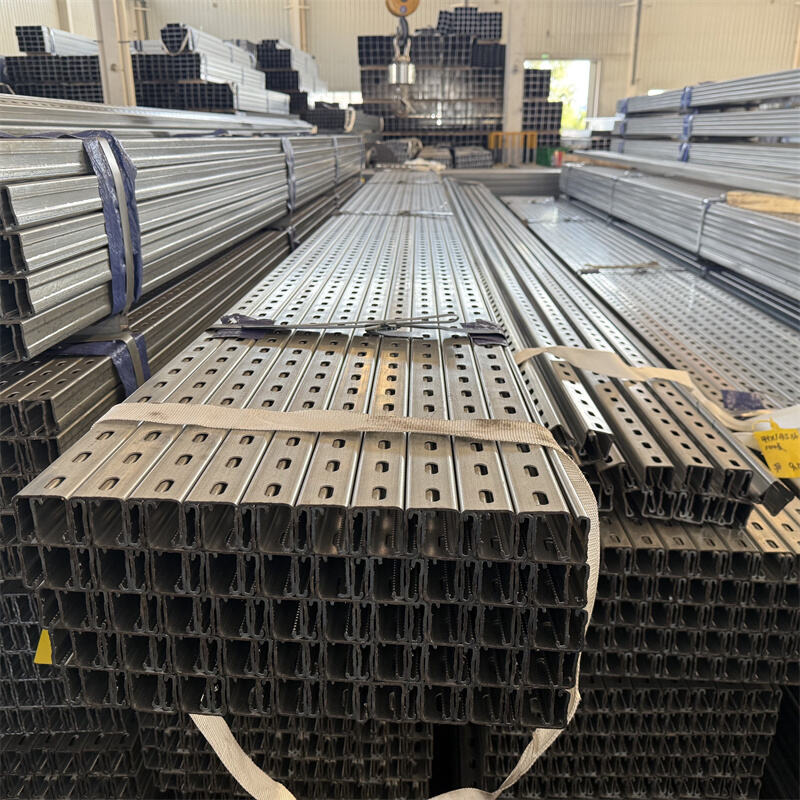

Carport Pv System
-
Carport Pv System
-

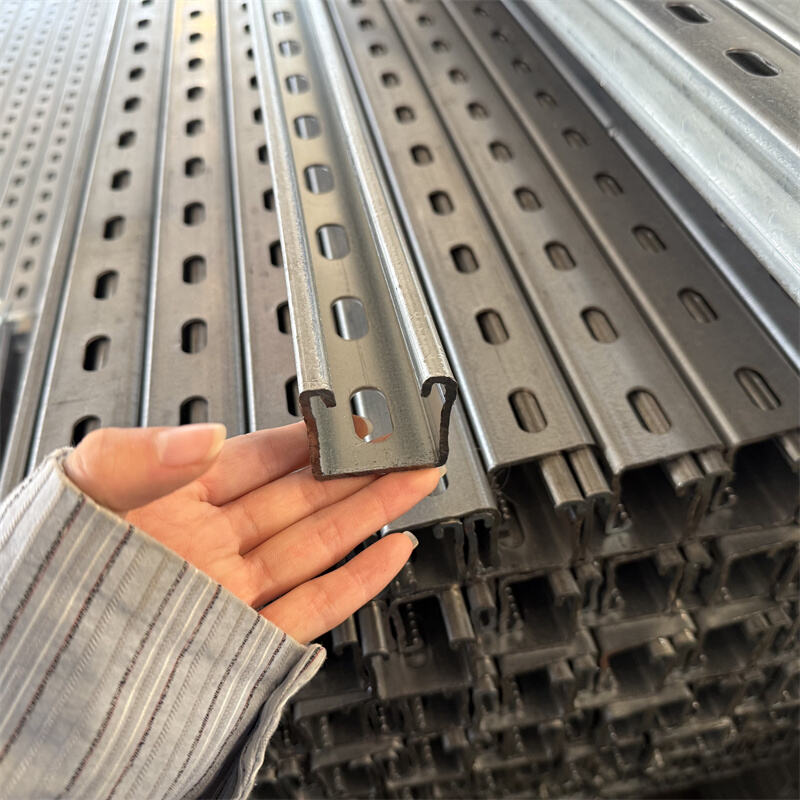

solar structure
