Description
Product name |

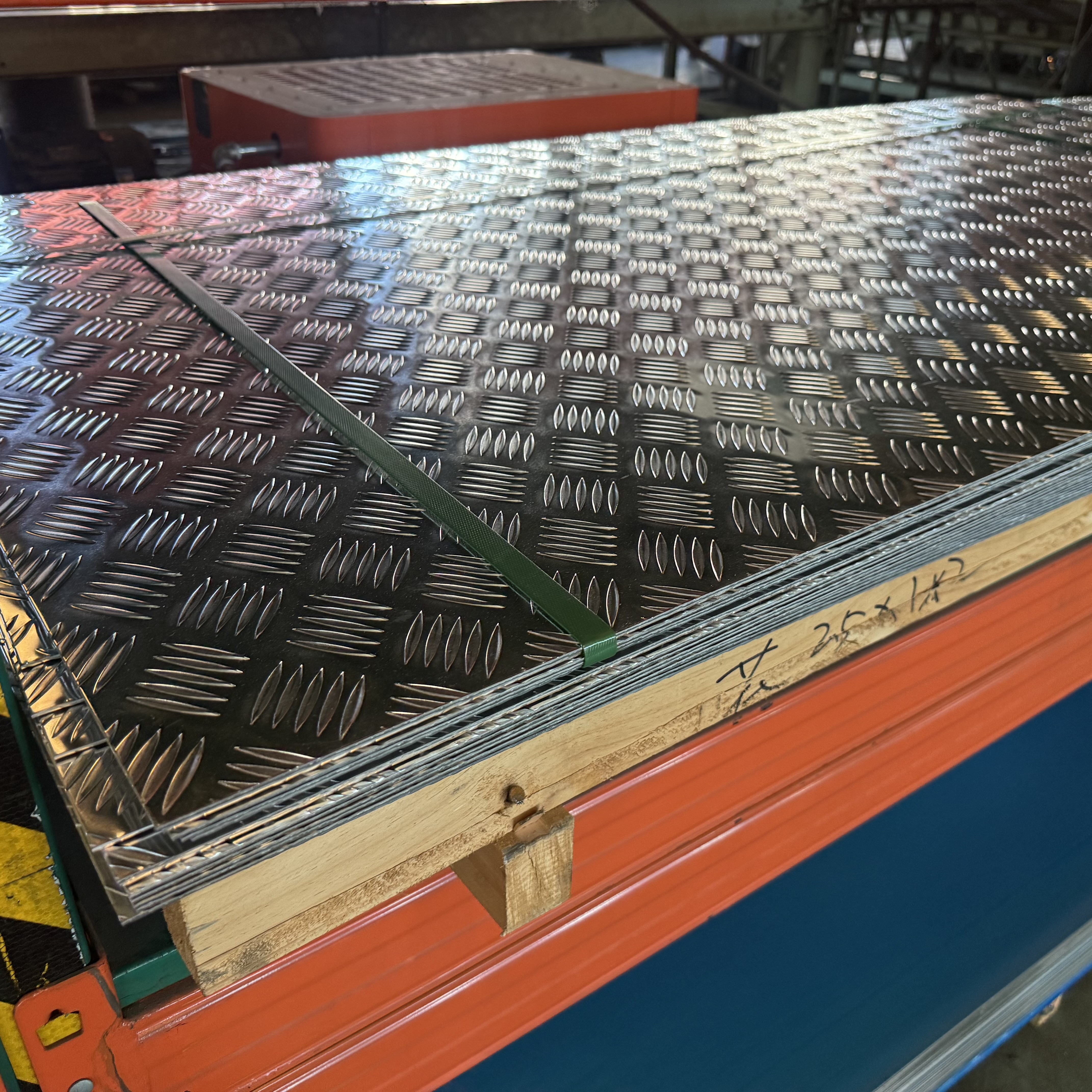

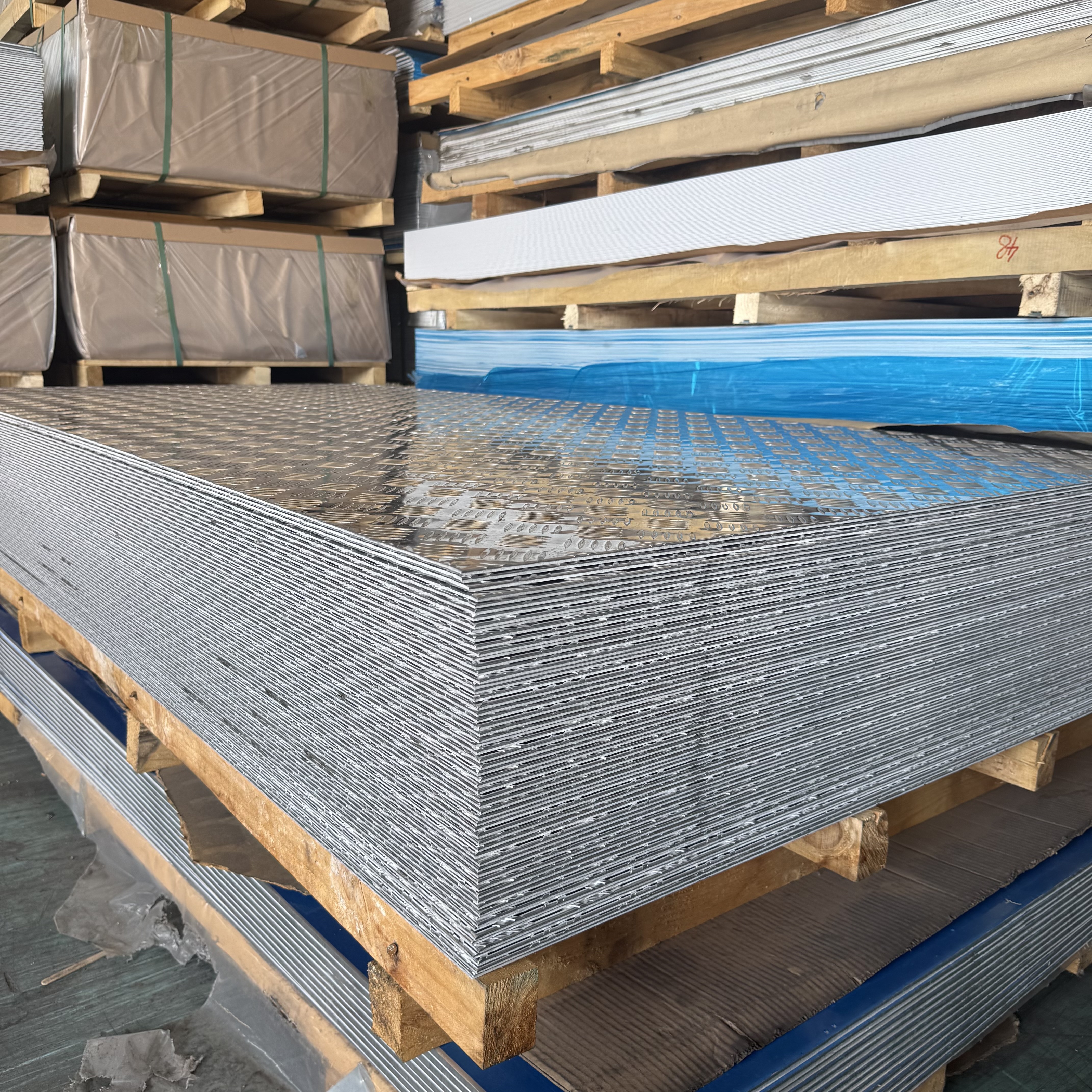

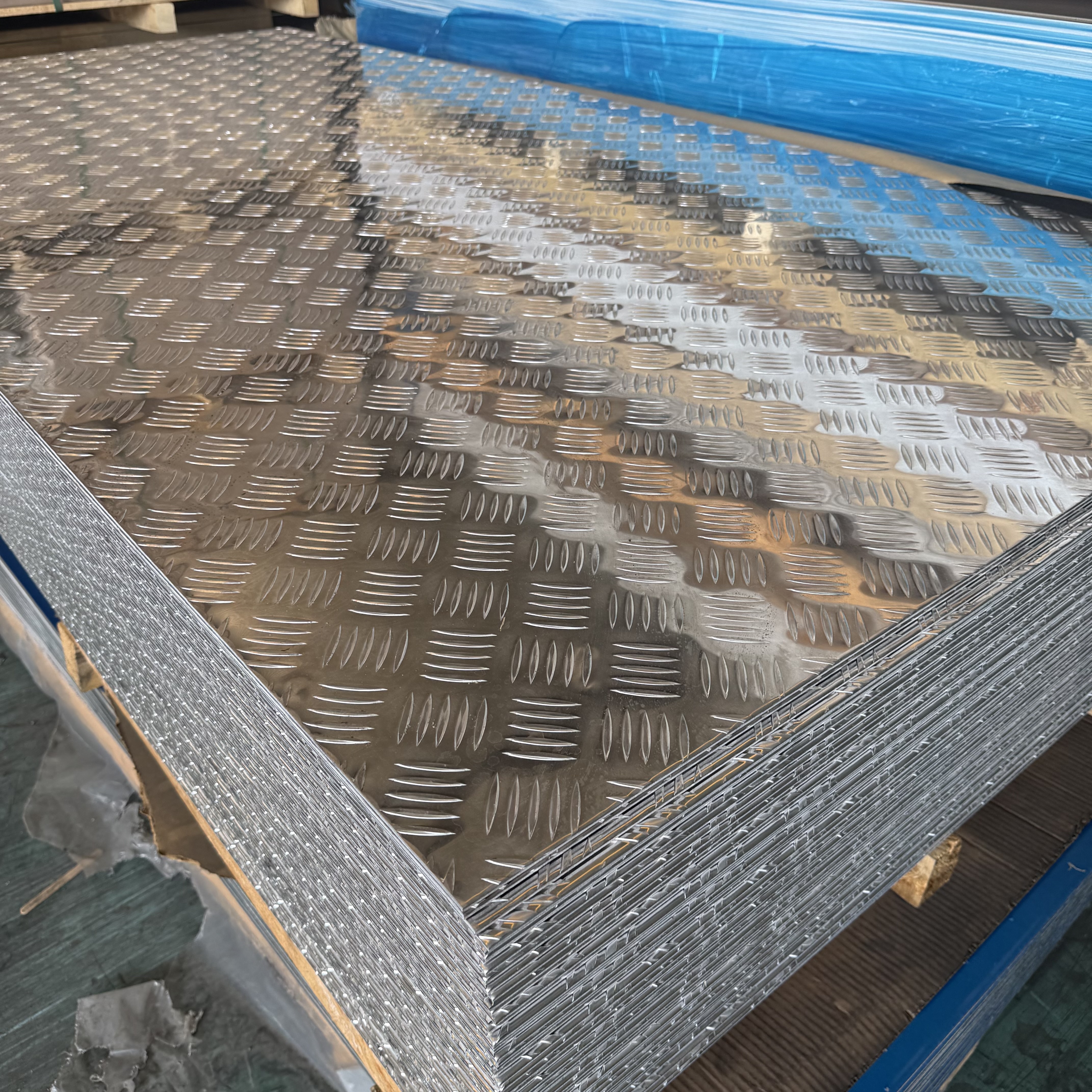

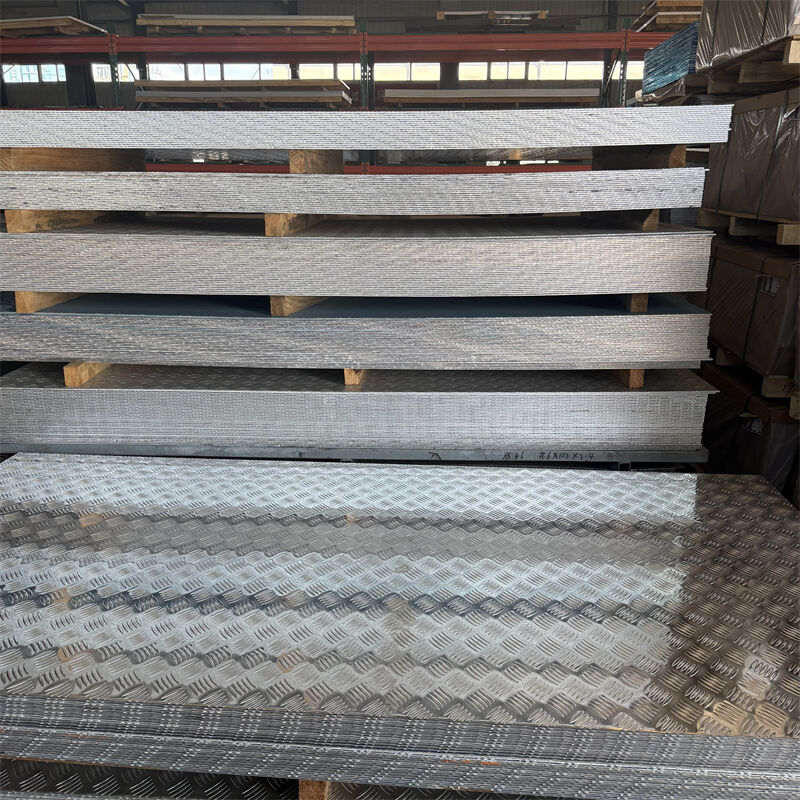

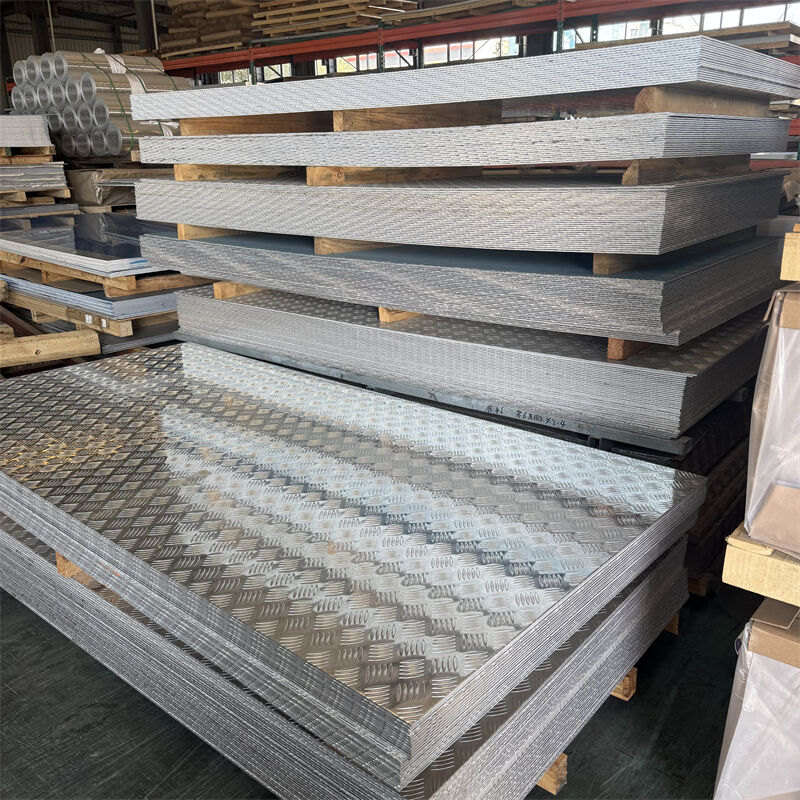

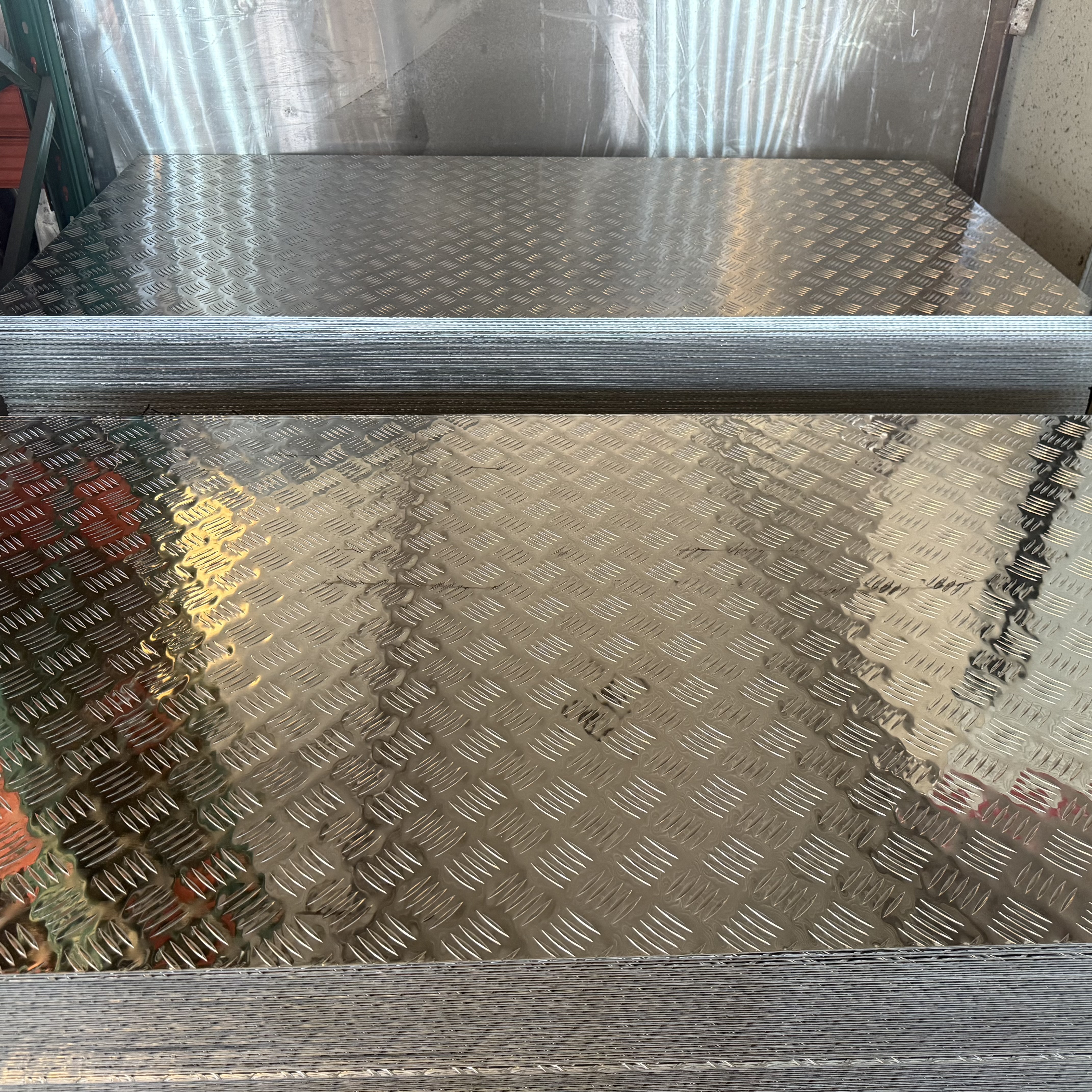

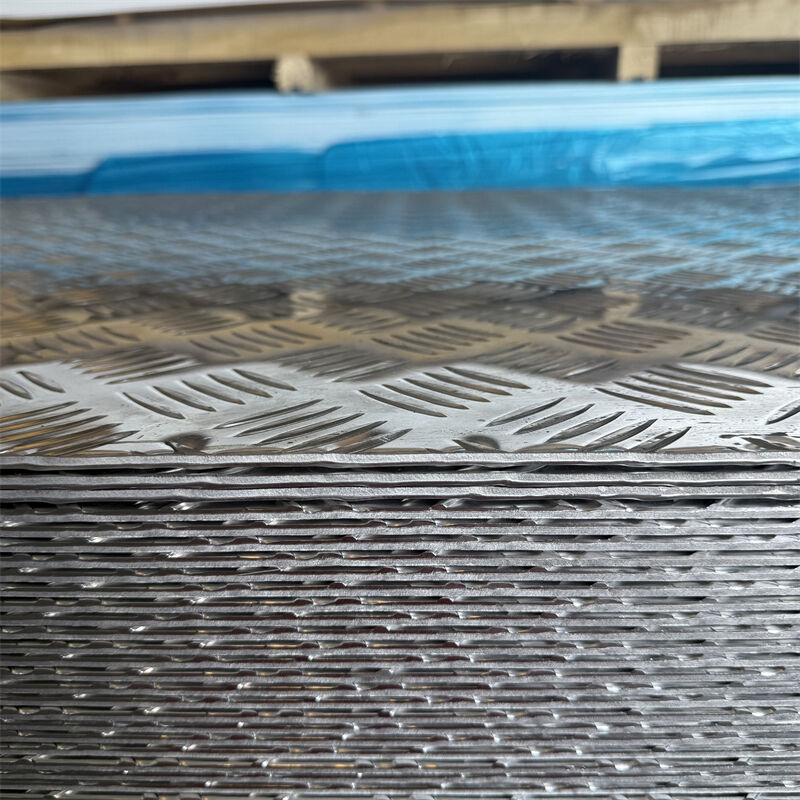

Aluminum Embossing Sheet |
Standard |
GB ASTM JIS SS DIN EN |
Thickness |
3.0mm |
Shape |
rectangle |
Method of processing |
hot-rolling;cold-rolling |
Material |
Aluminum Sheet |
Surface |
Grinding, polishing and painting. |
Minimum order quantity |
1 ton |
Product Business Terms
|
Minimum Order Quantity: |
1ton |
|
Price: |
2774-2884/ton |
|
Packaging Details: |
Standard Sea-worthy Packing |
|
Delivery Time: |
15-21days |
Product Specifications
| Standards | ASTM B209, JIS H4000-2006, GB/T 3190-2008, GB/T 3880-2006 etc |
| Grade | Hot Sales: 1060, 1100, 2024, 3003, 3004, 3105, 4043, 4047, 5005, 5051, 5052, 5053, 5056, 5058, 5251, 5454, 5754, 6061, 6063, 6082, |
| 1000 Series: 1060, 1050, 1100, 1070 | |
| 2000 Series: 2024, 2A12, 2017, 2014, 2A11, 2A14 | |
| 3000 Series: 3003, 3004, 3105, 3104, 3A21, 3005, 3M03 | |
| 5000 Series: 5052, 5083, 5182, 5754, 5A03, 5454, 5A06, 5005, 5252, 5086, 5A02, 5A05, 5052A, 5059, 5052B, 5M52, 5M49 | |
| 6000 Series: 6061, 6063, 6082, 6005, 6101, 6060, 6005A | |
| 7000 Series: 7075, 7005, 7050, 7A09, 7A04 | |
| Temper | T1-T8,O-H112 |
| Technology | Hot Rolled ( DC ), Cold Rolling( CC ), cast |
| Thickness | 0.2-300mm or customized as required |
| Width | 10-3500mm or customized as required |
| Length | 2000mm, 2440mm, 6000mm or customized as required |
| Surface | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc |

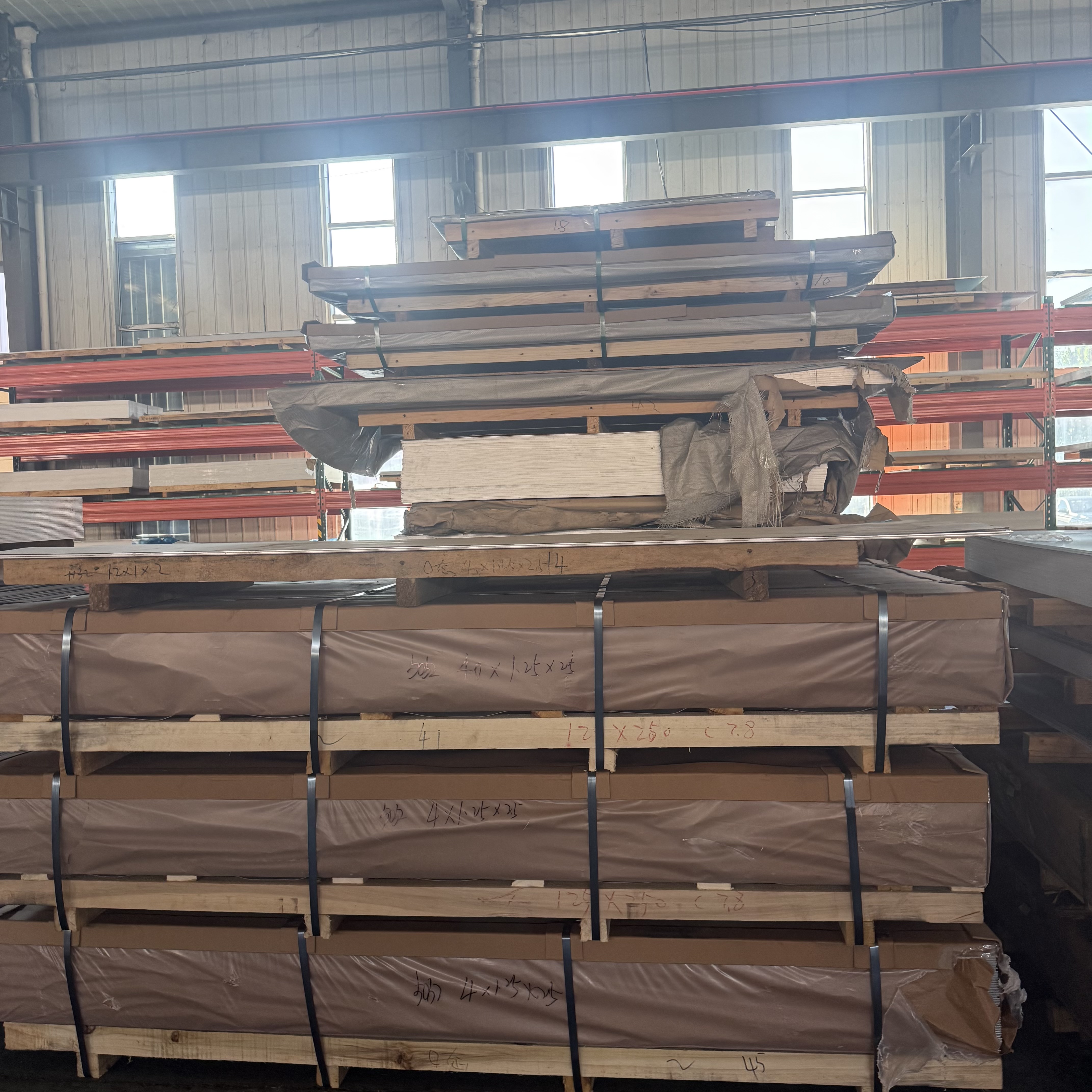

| Package | Standard export package,such as wooden box or as required |
Processing technic
Material Preparation
Qualified base material is selected, typically in the form of coils or pre-cut aluminum sheets.
The substrate undergoes cleaning and treatment (e.g., degreasing, acid washing) to ensure an absolutely clean surface, free of oil stains and oxides. This step is essential for guaranteeing the quality of the subsequent embossing process.
Embossing / Pattern Transfer
The cleaned metal sheet passes through a pair of specialized upper and lower rollers engraved with matching positive and negative patterns.
Under significant pressure, the patterns on the rollers are continuously and permanently impressed onto the surface of the metal sheet. This process can be carried out at room temperature (cold rolling) or with heating (hot rolling, less common).
Post-Processing
Leveling: The embossed sheet may exhibit some curvature and requires flattening using a leveling machine.
Cutting: Continuous coils are cut into sheets of specified dimensions according to order requirements.
Surface Treatment (optional): Depending on needs, the embossed sheets may undergo processes such as spraying, electroplating, anodizing (for aluminum sheets), or galvanizing to enhance corrosion resistance, aesthetics, or achieve specific colors.
Competitive Advantage
-
Diverse Surface Treatments
Offers various options such as anodizing, spray painting, etc., enhancing both aesthetics and durability; 100% recyclable, aligning with environmental sustainability principles.
-
Lightweight Product
Reduces transportation and installation costs while improving energy efficiency.
-
Long Service Life
Requires little to no maintenance with minimal upkeep costs, making it suitable for harsh environments such as coastal areas and chemical processing sites.
-
Flexible and Efficient Production
Easily cut, bent, and stamped, enabling efficient adaptation to complex shapes and customized demands.
