Angle iron carbon equilateral Angle Steel
Galvanizing is a surface treatment process that involves coating the surface of metals, alloys, or other materials with a layer of zinc for both aesthetic appeal and rust prevention. The primary method used is hot-dip galvanizing. It is mainly employed to prevent corrosion in steel, and the level of protection largely depends on the thickness of the zinc coating. After passivation, dyeing, or the application of a protective coating, the zinc layer can significantly enhance both its protective properties and decorative appearance.
Description
Product name |
Equilateral Angle Steel |
Standard |
GB,JIS,DIN,AISI,ASTM |
Length |
AS customer's required |
Thickness |
0.1-3mm As customer's required |
Method of processing |
cold-rolling |
Material |
304 |
Surface |
2B |
Exporting packaging |
Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
Product Business Terms
|
Minimum Order Quantity: |
1 ton |
|
Price: |
376-470/ton |
|
Packing |
Seaworthy Standard Package |
|
Delivery Time: |
15-21days |
|
Certificate |
ISO9001,CE |

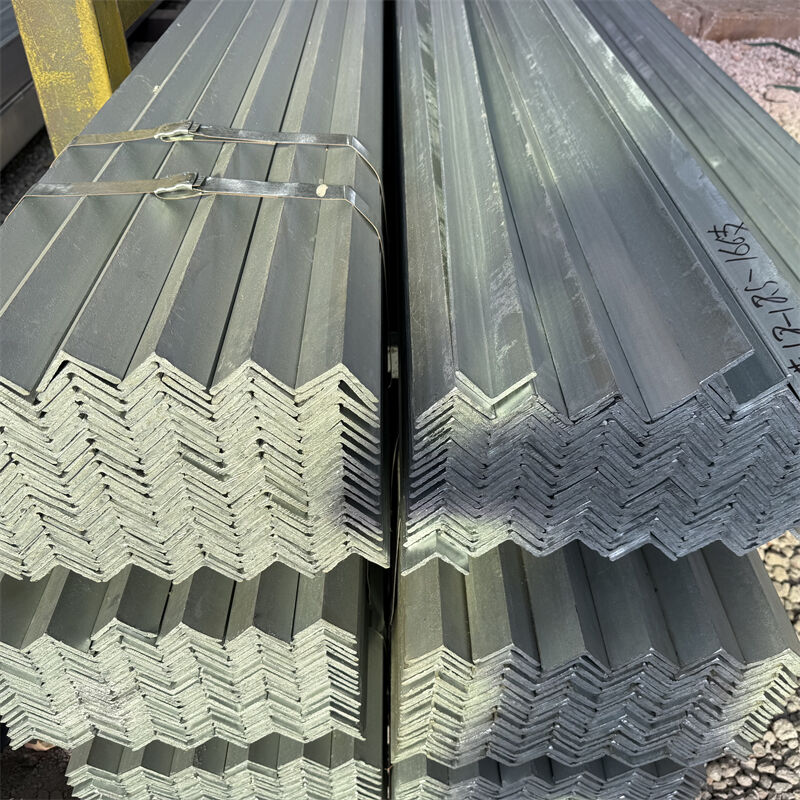

Product Presentation
Galvanizing is a surface treatment process that involves coating the surface of metals, alloys, or other materials with a layer of zinc for both aesthetic appeal and rust prevention. The primary method used is hot-dip galvanizing. It is mainly employed to prevent corrosion in steel, and the level of protection largely depends on the thickness of the zinc coating. After passivation, dyeing, or the application of a protective coating, the zinc layer can significantly enhance both its protective properties and decorative appearance.
Advantages
1. High Strength
The L-shaped cross-section of angle steel enables it to withstand both vertical and horizontal forces, making it widely used for support and reinforcement in building and industrial structures.
2. Cost Efficiency
Angle steel is relatively low in cost and easy to process, making it suitable for manufacturing shelves, racks, and similar structures.
3. Strong Compressive and Torsional Resistance
Angle steel exhibits excellent performance under load, making it ideal for use in frame structures.
4. Installation Flexibility
With light weight and compact profile, angle steel is convenient to handle and install during construction.
Applications
-
Construction Sector
Angle steel is primarily used for structural support in buildings and is widely employed in projects such as bridges, highways, and large public facilities. It is also used in the design and installation of window frames, door frames, and handrails, combining aesthetic appeal with functional performance.
-
Mechanical Manufacturing
In the mechanical manufacturing industry, angle steel serves as a structural material for various types of equipment, including machine tools, power equipment, and ships.
-
Vehicle Manufacturing
In vehicle production, angle steel is commonly used in automobile frames, railroad carriages, and electric vehicle chassis. Its durability and structural strength contribute to safer and more stable vehicle operation.
Specifications
| Specification | Weight | Specification | Weight |
| (mm) | (kg/m) | (mm) | (kg/m) |
| 25*25*3 | 1.124 | 90*90*8 | 10.946 |
| 25*25*4 | 1.459 | 90*90*10 | 13.476 |
| 30*30*3 | 1.373 | 100*100*6 | 9.366 |
| 30*30*4 | 1.786 | 100*100*7 | 10.83 |
| 40*40*3 | 1.852 | 100*100*8 | 12.276 |
| 40*40*4 | 2.422 | 100*100*10 | 15.12 |
| 40*40*5 | 2.976 | 100*100*12 | 17.898 |
| 45*45*3 | 2.088 | 110*110*7 | 11.928 |
| 45*45*4 | 2.736 | 110*110*8 | 13.532 |
| 45*45*5 | 3.369 | 110*110*10 | 16.69 |
| 50*50*3 | 2.332 | 110*110*12 | 19.782 |
| 50*50*4 | 3.059 | 125*125*8 | 15.504 |
| 50*50*5 | 3.77 | 125*125*10 | 19.133 |
| 50*50*6 | 4.465 | 125*125*12 | 22.696 |
| 63*63*5 | 4.822 | 125*125*14 | 26.193 |
| 63*63*6 | 5.721 | 140*140*10 | 21.488 |
| 63*63*8 | 7.469 | 140*140*12 | 25.522 |
| 70*70*5 | 5.397 | 140*140*14 | 29.49 |
| 70*70*6 | 6.406 | 160*160*10 | 24.729 |
| 70*70*7 | 7.398 | 160*160*12 | 29.391 |
| 70*70*8 | 8.373 | 160*160*14 | 33.987 |
| 75*75*5 | 5.818 | 160*160*16 | 38.518 |
| 75*75*6 | 6.905 | 180*180*12 | 33.159 |
| 75*75*7 | 7.976 | 180*180*14 | 38.383 |
| 75*75*8 | 9.03 | 180*180*16 | 43.542 |
| 75*75*10 | 11.089 | 180*180*18 | 48.634 |
| 80*80*6 | 7.376 | 200*200*14 | 42.894 |
| 80*80*7 | 8.525 | 200*200*16 | 48.68 |
| 80*80*8 | 9.658 | 200*200*18 | 54.401 |
| 80*80*10 | 11.874 | 200*200*20 | 60.056 |
| 90*90*6 | 8.35 | 200*200*24 | 71.168 |
| Equilateral Angle Steel | |||||||||
| Specifications and Models of Unequal Angle Steel | |||||||||
| Size | Toerance | Thickness | Toerance | Weight | Size | Tolerance | Thickness | Tolerance | Weight |
| 25x16 | ±0.8 | 3 | ±0.4 | 0.912 | 100x63 | +2.0 | 6 | ±0.7 | 7.55 |
| 25x16 | ±0.8 | 4 | ±0.4 | 1.176 | 100x63 | ±2.0 | 7 | ±0.7 | 8.722 |
| 32x20 | ±0.8 | 3 | ±0.4 | 1.171 | 100x63 | +2.0 | 8 | ±0.7 | 9.878 |
| 32x20 | ±0.8 | 4 | ±0.4 | 1.522 | 100x63 | +2.0 | 10 | ±0.7 | 12.142 |
| 40x25 | ±0.8 | 3 | ±0.4 | 1,484 | 100x80 | +2.0 | 6 | ±0.7 | 8.35 |
| 40x25 | ±0.8 | 4 | ±0.4 | 1.936 | 100x80 | ±2.0 | 7 | ±0.7 | 9.656 |
| 45x30 | ±0.8 | 3 | ±0.4 | 1.687 | 100x80 | +2.0 | 8 | ±0.7 | 10.946 |
| 45x30 | ±0.8 | 4 | ±0.4 | 2.203 | 100x80 | ±2.0 | 10 | ±0.7 | 13.476 |
| 50x32 | ±0.8 | 3 | ±0.4 | 1.908 | 110x70 | +2.0 | 6 | ±0.7 | 8.35 |
| 50x32 | ±0.8 | 4 | ±0.4 | 2.494 | 110x70 | ±2.0 | 7 | ±0.7 | 9.656 |
| 56x36 | ±0.8 | 3 | ±0.4 | 2.153 | 110x70 | +2.0 | 8 | ±0.7 | 10.946 |
| 56x36 | ±0.8 | 4 | ±0.4 | 2.818 | 110x70 | ±2.0 | 10 | ±0.7 | 13.476 |
| 56x36 | ±0.8 | 5 | ±0.4 | 3.466 | 125x80 | +2.0 | 7 | ±0.7 | 11.066 |
| 62x40 | ±1.5 | 4 | ±0.6 | 3.185 | 125x80 | ±2.0 | 8 | ±0.7 | 12.551 |
| 62x40 | ±1.5 | 5 | ±0.6 | 3.92 | 125x80 | +2.0 | 10 | ±0.7 | 15.474 |
| 62x40 | ±1.5 | 6 | ±0.6 | 4.638 | 125x80 | +2.0 | 12 | ±0.7 | 18.33 |
| 62x40 | ±1.5 | 7 | ±0.6 | 5.339 | 140x90 | +2.0 | 8 | ±0.7 | 14.16 |
| 70x45 | ±1.5 | 4 | ±0.6 | 3.57 | 140x90 | ±2.0 | 10 | ±0.7 | 17.475 |
| 70x45 | ±1.5 | 5 | ±0.6 | 4.403 | 140x90 | +2.0 | 12 | ±0.7 | 20.724 |
| 70x45 | ±1.5 | 6 | ±0.6 | 5.218 | 140x90 | +2.0 | 14 | ±0.7 | 23.908 |
| 70x45 | ±1.5 | 7 | ±0.6 | 6.011 | 160x100 | ±2.5 | 10 | ±1.0 | 19.872 |
| 75x50 | ±1.5 | 5 | ±0.6 | 4.808 | 160x100 | ±2.5 | 12 | ±1.0 | 23.592 |
| 75x50 | ±1.5 | 6 | ±0.6 | 5.699 | 160x100 | +2.5 | 14 | ±1.0 | 27.247 |
| 75x50 | ±1.5 | 8 | ±0.6 | 7.431 | 160x100 | ±2.5 | 16 | ±1.0 | 30.835 |
| 75x50 | ±1.5 | 10 | ±0.6 | 9.098 | 180x110 | ±2.5 | 10 | ±1.0 | 22.272 |
| 80x50 | ±1.5 | 5 | ±0.6 | 5.005 | 180x110 | ±2.5 | 12 | ±1.0 | 26.464 |
| 80x50 | ±1.5 | 6 | ±0.6 | 5.935 | 180x110 | +2.5 | 14 | ±1.0 | 30.589 |
| 80x50 | ±1.5 | 7 | ±0.6 | 6.848 | 180x110 | ±2.5 | 16 | ±1.0 | 34.649 |
| 80x50 | ±1.5 | 8 | ±0.6 | 7.745 | 200x125 | ±2.5 | 12 | ±1.0 | 29.761 |
| 90x56 | ±1.5 | 5 | ±0.6 | 5.661 | 200x125 | ±2.5 | 14 | ±1.0 | 34.436 |
| 90x56 | ±1.5 | 6 | ±0.6 | 6.717 | 200x125 | +2.5 | 16 | ±1.0 | 39.045 |
| 90x56 | ±1.5 | 7 | ±0.6 | 7.756 | 200x125 | ±2.5 | 18 | ±1.0 | 43.588 |
| 90x56 | ±1.5 | 8 | ±0.6 | 8.779 | Legnth=6-12 meters SS400 | ||||
| Equal Angle steel (kg/m) | ||||
| 20*3 | 0.889 | 100*8 | 12.276 | |
| 20*4 | 1.145 | 100*10 | 15.12 | |
| 25*2 | 0.763 | 100*12 | 17.898 | |
| 25*4 | 1.459 | 110*7 | 11.928 | |
| 30*2 | 0.922 | 110*8 | 13.532 | |
| 30*3 | 1.373 | 110*10 | 16.69 | |
| 30*4 | 1.786 | 110*12 | 19.782 | |
| 40*3 | 1.852 | 120*8 | 14.88 | |
| 40*4 | 2.422 | 120*10 | 18.37 | |
| 40*5 | 2.976 | 120*12 | 21.666 | |
| 45*4 | 2.736 | 125*8 | 15.504 | |
| 45*5 | 3.369 | 125*10 | 19.133 | |
| 50*3 | 2.332 | 125*12 | 22.696 | |
| 50*4 | 3.059 | 130*10 | 19.8 | |
| 50*5 | 3.77 | 130*12 | 23.6 | |
| 50*6 | 4.465 | 130*13 | 25.4 | |
| 56*4 | 3.446 | 130*14 | 27.2 | |
| 56*5 | 4.251 | 130*16 | 30.9 | |
| 63*4 | 3.907 | 150*10 | 23 | |
| 63*5 | 4.822 | 150*12 | 27.3 | |
| 63*6 | 5.721 | 150*14 | 31.6 | |
| 63*8 | 7.469 | 150*15 | 33.8 | |
| 70*5 | 5.397 | 140*10 | 21.488 | |
| 70*6 | 6.406 | 140*12 | 25.522 | |
| 70*7 | 7.398 | 140*14 | 29.49 | |
| 70*8 | 8.373 | 160*10 | 24*729 | |
| 75*5 | 5.818 | 160*12 | 29.391 | |
| 75*6 | 6.905 | 160*14 | 33.987 | |
| 75*7 | 7.976 | 160*16 | 38*581 | |
| 75*8 | 9.03 | 180*12 | 33.159 | |
| 75*10 | 11.089 | 180*14 | 38*382 | |
| 75*9 | 10.06 | 180*16 | 43.542 | |
| 80*5 | 6.211 | 180*18 | 48.634 | |
| 80*6 | 7.376 | 200*14 | 42.894 | |
| 80*7 | 8.525 | 200*16 | 48.68 | |
| 80*8 | 9.658 | 200*18 | 54.401 | |
| 80*10 | 11.874 | 200*20 | 60.056 | |
| 90*6 | 8.35 | 200*24 | 71.168 | |
| 90*7 | 9.656 | 200*25 | 73.6 | |
| 90*8 | 10.946 | 175*12 | 31.8 | |
| 90*10 | 13.476 | 175*15 | 39.4 | |
| 100*6 | 9.366 | 250*25 | 93.77 | |
| 100*7 | 10.83 | 250*35 | 128 | |
| Unequal Angle (kg/m) | ||||
| 45*30*4 | 2.251 | 160*100*12 | 23.592 | |
| 50*32*4 | 2.494 | 160*100*14 | 25.247 | |
| 56*36*4 | 2.818 | 160*100*16 | 30.835 | |
| 56*36*5 | 3.466 | 180*110*10 | 22.273 | |
| 63*40*5 | 3.92 | 180*110*12 | 26.464 | |
| 63*40*6 | 4.638 | 180*110*14 | 30.589 | |
| 70*50*5 | 4.808 | 180*110*16 | 34.649 | |
| 70*50*6 | 5.699 | 200*125*12 | 29.761 | |
| 70*50*8 | 7.431 | 200*125*14 | 34.436 | |
| 90*56*6 | 6.77 | 200*125*16 | 39.045 | |
| 90*56*8 | 8.779 | 200*125*18 | 43.588 | |
| 100*63*6 | 7.55 | 200*125*20 | 47.885 | |
| 100*63*8 | 9.878 | 100*75*6 | 8.06 | |
| 100*63*10 | 12.142 | 100*75*7 | 9.34 | |
| 100*80*6 | 8.35 | 100*75*8 | 10.6 | |
| 100*80*7 | 9.656 | 100*75*9 | 11.8 | |
| 100*80*8 | 10.946 | 100*75*10 | 13 | |
| 100*80*10 | 13.476 | 100*75*12 | 15.35 | |
| 110*70*6 | 8.35 | 125*75*7 | 10.7 | |
| 110*70*7 | 9.656 | 125*75*8 | 12.2 | |
| 110*70*8 | 10.946 | 125*75*9 | 13.6 | |
| 110*70*10 | 13.476 | 125*75*10 | 15 | |
| 125*80*7 | 11.066 | 125*75*12 | 17.8 | |
| 125*80*8 | 12.551 | 150*90*8 | 14.7 | |
| 125*80*10 | 15.474 | 150*90*9 | 16.4 | |
| 125*80*12 | 18.33 | 150*90*10 | 18.2 | |
| 140*90*8 | 14.16 | 150*90*12 | 21.6 | |
| 140*90*10 | 17.475 | 200*100*10 | 23 | |
| 140*90*12 | 20.724 | 200*100*12 | 27.62 | |
| 140*90*14 | 23.908 | 200*100*14 | 30.8 | |
| 160*100*10 | 19.872 | 200*100*15 | 34.04 | |
